Industrial-Grade Boiler Protection Shields for Enhanced Durability & Efficiency

Reliable solutions designed to protect boiler tubes and pressure parts from high-velocity gas erosion, abrasive ash particles, and extreme thermal conditions — engineered to extend tube life and minimize maintenance costs.

Precision-manufactured tube protection systems designed to combat severe flue gas erosion, ash impact, and thermal degradation in industrial boiler environments.

Protect your boiler’s critical pressure parts and tube surfaces from high-velocity gas erosion, abrasive ash particles, and thermal wear. Designed for heavy industrial boiler systems where reliability and uptime are essential.

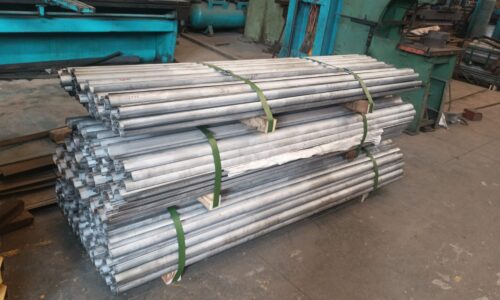

mechsignia boiler protection stock

What Are Boiler Protection Shields?

Boiler Protection Shields are engineered protective components designed to safeguard boiler tubes, bends, elbows, and other pressure parts from severe erosion and corrosion caused by high-velocity flue gases and abrasive ash particles. These shields act as a durable barrier and significantly reduce tube thinning, increasing operational life while minimizing unscheduled maintenance.

Industrial boilers operate under extreme pressure, temperature, and velocity conditions. Mechsignia designs and manufactures durable Boiler Protection Shields that reinforce vulnerable areas of boiler tubes, ensuring long-term operational stability and reduced lifecycle costs.

How Boiler Protection Shields Work

Boilers operating in thermal power plants, petrochemical units, and industrial environments are constantly subjected to extreme temperature, gas velocity, and ash particle impact. Over time, this causes surface thinning and failure of boiler tubes.

Boiler Protection Shields absorb erosive forces instead of boiler tube walls, reducing direct impact and preserving the integrity of pressure parts. With optimal design and material selection, these shields help maintain performance and reduce unexpected downtime.

Bullet List:
✔ Blocks erosive impact on boiler tube surfaces
✔ Reduces thermal wear and corrosion
✔ Increases service life of boiler components
✔ Helps optimize maintenance intervals

Key Features & Benefits

High-Performance Materials
Manufactured from premium alloys and stainless-steel grades to withstand high temperatures and abrasive conditions.

Precision Engineering
Designed to match exact tube geometry for optimal fit and protection in high wear zones.

Extended Component Life
Significantly increases tube and pressure part service life, reducing replacements and boosting uptime.

Easy Installation
Precision-made shields allow faster installation during maintenance shutdowns.

Performance Advantages

Operational Benefits of Installing Boiler Erosion Shields

Installing erosion protection shields provides measurable operational improvements:

• Reduced tube failure frequency
• Lower annual maintenance expenditure
• Increased inspection intervals
• Improved safety compliance
• Protection of high-cost pressure components
• Enhanced boiler reliability during peak load operation

Industrial Applications

Boiler Protection Shields are employed in diverse industries where boiler tubes are exposed to severe operating conditions:

List:
✔ Thermal power generation plants
✔ Petrochemical industries
✔ Refineries & process heating systems
✔ Biomass & waste heat recovery boilers
✔ Superheaters, water walls, economizers, and critical pressure parts

Types of Boiler Protection Shields

Boiler Protection Shields are available in multiple configurations to effectively cover different wear conditions and structural shapes within industrial boilers.

Table — Type vs Application

Shield Type Application
Straight Tube Shields For straight boiler tube sections requiring uniform protection
Bend & Curved Shields Designed for elbow and bend zones with high erosion risk
Comb/Shaped Shields For heat-intensive zones with multiple impact directions
Custom Shields Tailored per tube size, shape, and operating conditions

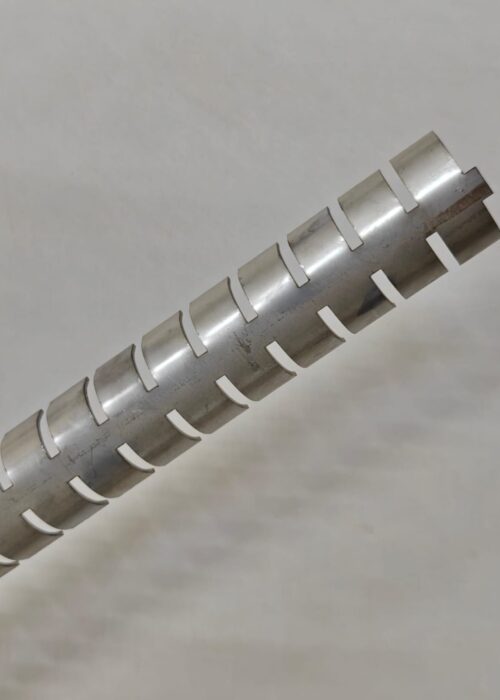

boiler protection shield strip

Quality & Manufacturing Standards

Precision Manufacturing & Quality Assurance

At Mechsignia, every Boiler Protection Shield undergoes controlled fabrication processes, including:

  • Precision cutting and forming

  • Dimensional accuracy inspection

  • Surface finishing for smooth contact

  • Material grade verification

Material Engineering

Material Selection for Extreme Operating Conditions

Material performance is critical in erosion control applications. We offer:

  • Austenitic Stainless Steel Grades

  • High Chromium Alloy Steels

  • Heat Resistant Steel Grades

  • Specialized Materials for High Sulfur or Corrosive Environments

Material choice depends on:

  • Flue gas temperature

  • Particulate velocity

  • Ash composition

  • Boiler load profile

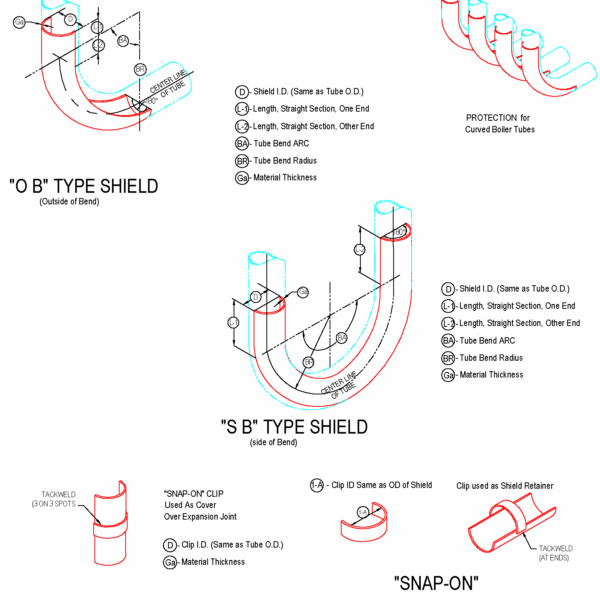

tube-shields-outside-bend-and-side-bend-types

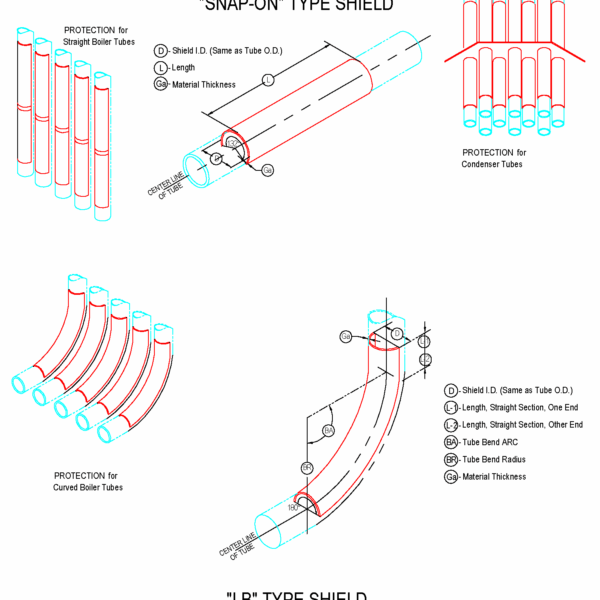

snap-on-type-shield

Types Of Stainless Steel Used For Manufacturing Boiler Protection Shields

In industrial boiler environments, selecting the correct stainless steel grade is critical to ensure resistance against high temperature, oxidation, corrosion, and abrasive erosion. Below are the most commonly used stainless steel grades for manufacturing boiler protection shields and tube erosion covers.

1️⃣ SS 304 (Austenitic Stainless Steel)

Best For: Moderate temperature applications

SS 304 is one of the most widely used stainless steel grades due to its excellent corrosion resistance and good fabrication properties.

Key Properties:

  • Good resistance to oxidation

  • Strong mechanical strength

  • Easy forming and welding

  • Cost-effective material option

Typical Use:
Suitable for boiler sections operating under moderate thermal and erosion exposure conditions.

2️⃣ SS 316 (Molybdenum-Bearing Stainless Steel)

Best For: Corrosive industrial environments

SS 316 contains molybdenum, which improves resistance against chlorides and acidic environments.

Key Properties:

  • Higher corrosion resistance than SS 304

  • Better performance in chemical plants

  • Improved resistance to pitting and crevice corrosion

Typical Use:
Used in petrochemical plants, refineries, and boilers exposed to aggressive flue gases.

3️⃣ SS 310 / SS 310S (High Temperature Stainless Steel)

Best For: High-temperature boiler zones

SS 310 and 310S are designed specifically for elevated temperature applications.

Key Properties:

  • Excellent oxidation resistance

  • High chromium and nickel content

  • Performs well above 1000°C

  • Superior heat resistance

Typical Use:
Ideal for superheaters, reheaters, and high-heat erosion zones in power plants.

4️⃣ SS 321 (Stabilized Stainless Steel)

Best For: High temperature + thermal cycling

SS 321 contains titanium, which stabilizes the material and prevents carbide precipitation during welding.

Key Properties:

  • Improved resistance to intergranular corrosion

  • Good high-temperature strength

  • Suitable for welded boiler components

Typical Use:
Applied in high-heat pressure parts requiring structural stability.

5️⃣ SS 347 (Niobium Stabilized Stainless Steel)

Best For: Severe high-temperature stress environments

SS 347 offers enhanced resistance against thermal fatigue and stress corrosion cracking.

Key Properties:

  • Excellent creep resistance

  • Suitable for prolonged high-temperature exposure

  • Good weldability

Typical Use:
Used in advanced power generation and high-load industrial boilers.

How To Choose The Right Stainless Steel Grade?

Selection depends on:

  • Operating temperature

  • Flue gas composition

  • Ash particle velocity

  • Corrosion severity

  • Pressure load conditions

  • Maintenance cycle expectations

A technical evaluation of boiler conditions helps determine the most suitable stainless steel grade for long-term performance.

Summary Table

Grade Temperature Resistance Corrosion Resistance Common Application
SS 304 Moderate Good Standard boiler sections
SS 316 Moderate-High Excellent Chemical & refinery boilers
SS 310 Very High Good Superheaters & high-heat zones
SS 321 High Good Welded high-temp components
SS 347 High Very Good Heavy-duty pressure parts

Why Mechsignia’s Shields Stand Out

Strategic Advantage

We combine practical field knowledge with engineering expertise to deliver dependable erosion control systems tailored to industrial boiler applications

⭐ Manufactured with precision engineering
⭐ Fully customizable per requirement
⭐ Designed for harsh industrial environments
⭐ Industrial-grade material sourcing
⭐ Backed by technical support & rapid delivery
⭐ Reliable B2B support

Our goal is to deliver industry-ready protection solutions that help you minimize downtime and maximize equipment life.

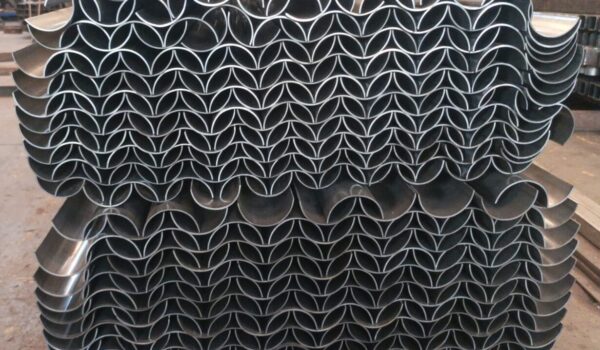

boiler-protection-shield plant mechsignia

Protect Your Boiler with High-Performance Shields

Talk to our experts today and find the ideal solution for your system’s protection needs.
